DT-Diagnostic Test
CA=Corrective Action
DT-6 for Camera not recording or Intermittent Recording (gaps):
Typically this occurs as a result of power interruption and power issue.
View NAS on Web, Standard IP address for NAS Server is “192.168.XX.6”

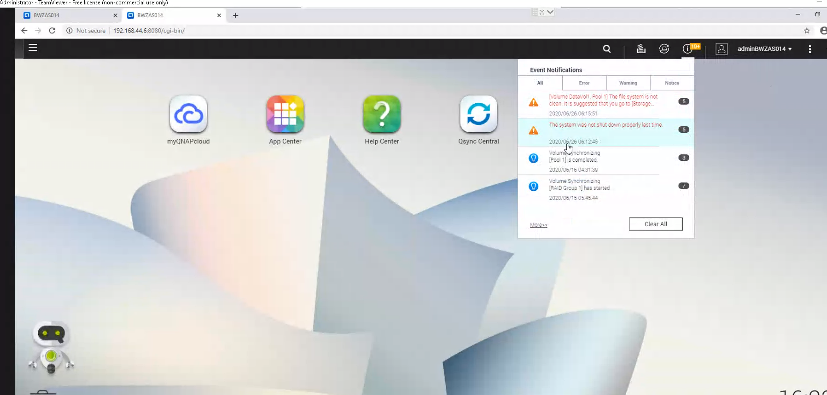

Click the information icon to review logs:
For this failure, it will indicate power issue logs

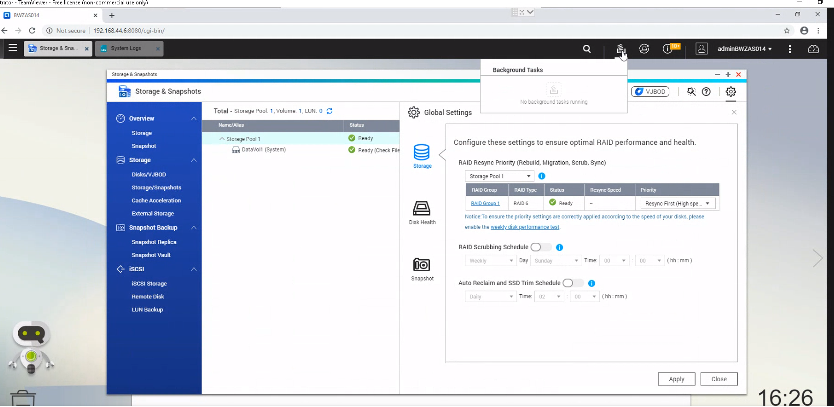

After the NAS has restarted it will perform an auto RAID Synchronization – and during this time as it is rebuilding the data/video – it will display in the VMS as Recording Gap. This process typically takes more than 12 hours depending if the unit experiences another power interruption before completion – it will begin the process again, but this occurs it compounds the RAID Synchronization and may extend the process for as much as a few days
